INSTALLATION

This page will show you the simple method of installing Pivot Pegz onto your bike. Here is a link to a video by one of our customers showing the installation method: https://www.youtube.com/watch?v=y8zOi3fJ4QA

MOUNT SPRING FITMENT

The picture below shows the correct configuration for fitment of the left and right Mount Springs to all Pivot Pegz models.

Note: The spring legs shown above are designed to lean against the motorcycle frame and are compressed when the pegs are moved into position and the pins are inserted. Special Note: The springs legs do not insert into the spring hole or groove in the frame bracket like some standard spring do, they lean against the back of the frame bracket instead - please view picture above and below. (Rubber bands are for display purposes only and are not to be fitted to the motorcycle

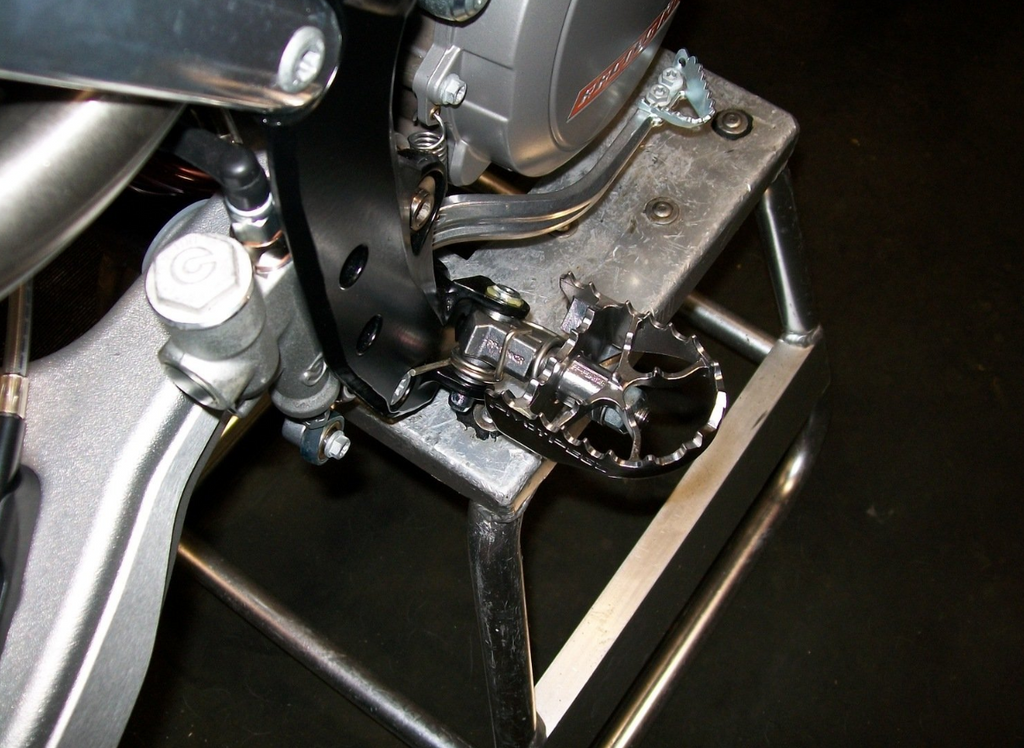

Below is another picture showing the Mount Springs installed onto a KTM. The Mount Spring installation method and position is the same on all bikes.
